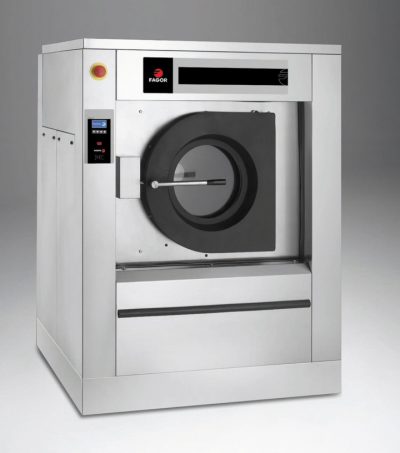

washing machines
HIGH centrifugal SPEED
(11 to 45 kg)
STATE-OF-THE-ART TECHNOLOGY AND HIGH G-FACTOR
This type of washing machine with high spin speed (G-factor: 350 to 450) maximally reduces the residual moisture remaining after the washing cycle, thus allowing significant savings in the subsequent phases, such as in tumble dryers or ironers. The simple and quick installation and the minimal space required for their use and maintenance are a decisive advantage over other series.
- High rotational speed
- More features
- More flexibility
- Longer service life
- Increased efficiency
Technical data
- G-FACTOR = 450
- Control via electronic microprocessor “Touch Plus Control
- 26 factory preset programmes
- Possibility of unlimited programming, exporting and importing of programmes via USB (management programme “Wash Control” included)
- Traceability and storage of phase and programme data
- 8 signals for automatic detergent dosing, programmable in time and delay
- Detergent drawer with 4 compartments
- 3 water inlets, plus configurable water levels
- Configurable washing and drying speeds
- Door lock with security against unintentional opening
- Frequency converter indicating irregularly distributed charge before skidding
- Standard frequency: 50-60 Hz
- All units meet WRAS requirements and are certified accordingly
DOWNLOADS & Media
Model overview
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.
| Modell/Model | Fassungsvermögen in (kg)/ Load capacity (kg) | Schleudern UpM/ Washing Speed UpM | Leistung kW/ Total Electric Power (kW) | Abmessungen (mm)/ Dimensions (mM) | Datenblatt (DE) | Data Sheet (EN) |
|---|---|---|---|---|---|---|
| LA-11 TP2 E | 11 | 1231 | 6.25 | 692x788x1.158 | Herunterladen | Download |
| LA-11 TP2 HW | 11 | 1231 | 0.75 | 692x788x1.158 | Herunterladen | Download |
| LA-11 TP2 S | 11 | 1231 | 0.75 | 692x788x1.158 | Herunterladen | Download |
| LA-14 TP2 E | 14 | 1138 | 9.5 | 788x869x1.307 | Herunterladen | Download |
| LA-14 TP2 HW | 14 | 1138 | 1.5 | 788x869x1.307 | Herunterladen | Download |
| LA-14 TP2 S | 14 | 1138 | 1.5 | 788x869x1.307 | Herunterladen | Download |
| LA-18 TP2 E | 18 | 1071 | 12.75 | 884x913x1.415 | Herunterladen | Download |
| LA-18 TP2 HW | 20 | 1071 | 2.2 | 884x913x1.415 | Herunterladen | Download |
| LA-18 TP2 S | 20 | 1071 | 2.2 | 884x913x1.415 | Herunterladen | Download |
| LA-22 TP2 E | 22 | 1071 | 12.75 | 979x1.041x1.553 | Herunterladen | Download |
| LA-22 TP2 HW | 25 | 1071 | 2.2 | 979x1.041x1.553 | Herunterladen | Download |
| LA-22 TP2 S | 25 | 1071 | 2.2 | 979x1.041x1.553 | Herunterladen | Download |
| LA-28 TP2 E | 28 | 1024 | 19,2 | 979x1.041x1.553 | Herunterladen | Download |
| LA-28 TP2 HW | 31 | 1024 | 4 | 979x1.070x1.553 | Herunterladen | Download |
| LA-28 TP2 S | 31 | 1024 | 4 | 979x1.070x1.553 | Herunterladen | Download |
| LA-35C TP2 E | 39 | 966 | 23 | 1.095x1.184x1.598 | Herunterladen | Download |
| LA-35C TP2 HW | 39 | 966 | 6 | 1.095x1.184x1.598 | Herunterladen | Download |
| LA-35C TP2 S | 39 | 966 | 6 | 1.095x1.184x1.598 | Herunterladen | Download |
| LA-45C TP2 E | 42 | 966 | 23 | 1.095x1.304x1.598 | Herunterladen | Download |
| LA-45C TP2 HW | 47 | 966 | 6 | 1.095x1.304x1.598 | Herunterladen | Download |
| LA-45C TP2 S | 47 | 966 | 6 | 1.095x1.304x1.598 | Herunterladen | Download |
