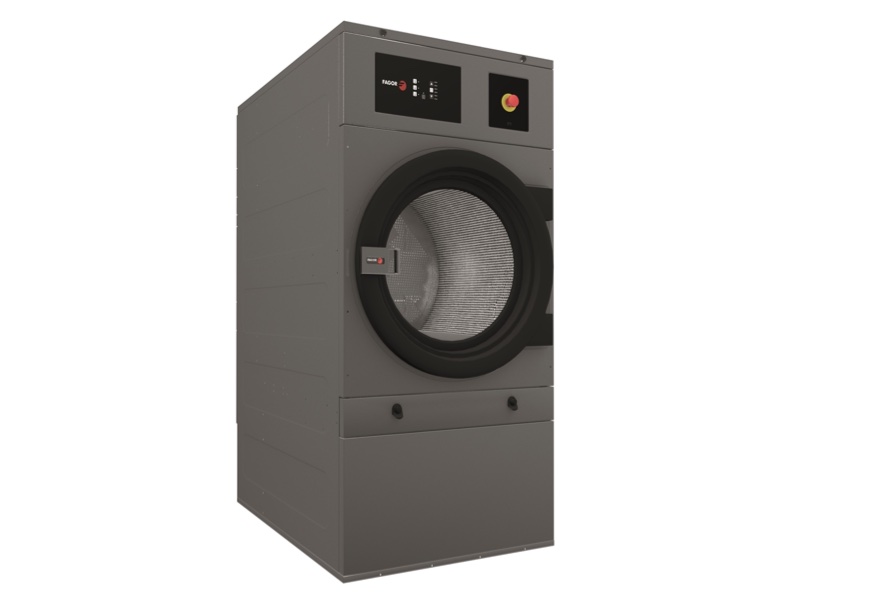

SR-11-1

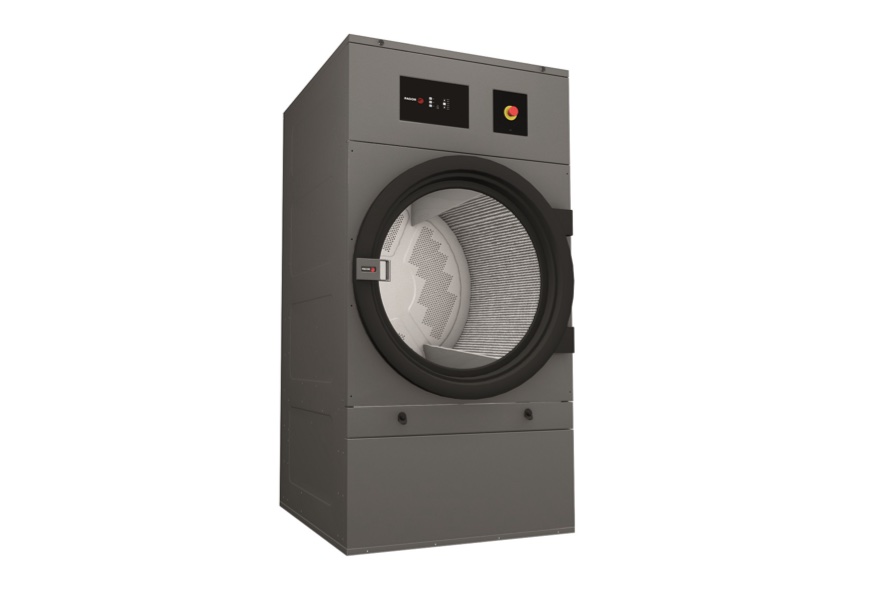

SR-28
secadora-industrial-10

Tumble dryer

Concept
(11 to 35 kg)

THE PERFECT BALANCE BETWEEN QUALITY AND PRICE

The units of the Concept product line are intended for users who are looking for optimal performance with easy operation, who want to avoid difficulties and who desire uncomplicated maintenance. The models are equipped with high quality functions as standard and have EASY CONTROL…

  • High rotation speed
  • More functions
  • More flexibility
  • Longer lifetime
  • Higher efficiency

Technical data

  • Easy Control (M) with the possibility of time-temperature control
  • easy-to-clean steel outer casing with gray skinplate and stainless steel look
  • stainless steel drum
  • mixed axial-radial airflow for more efficient drying
  • drum with recessed holes for gentle treatment of fabrics
  • more ergonomic, larger lint filter in the lower part for better airflow
  • automatic reversal of drum rotation direction
  • frequency converter for gentler operation
  • ergonomic door with large opening
  • wrinkle prevention system
  • audible signal to indicate the end of the cycle
  • emergency stop button and safety magnetic switch that stops the machine
  • Motion transmission by gearmotor: models up to 23 kg.
  • By means of poly-V pulley and belt, drum supported on wheels: 28 and 35 kg models.
  • optional screen for displaying time, temperature and program (three possible programs)
  • Easy Control
    This electronic control panel of the Concept and Economic Line dryers of the Kare range offers buttons for easy, intuitive and cost-saving control of temperature (high, medium and low) and time. It also allows programming from an external console.
    console. Optional screen for displaying time, temperature and program (3 possible programs). Access to the technical menu is possible even without the console.



  • Mixed flow
    The new mixed axial-radial air flow system of the Kare series increases the efficiency of all drying processes thanks to the improved air flow inside the drum.



  • Stainless steel drum
    The efficient stainless steel drum design of the Kare Concept, Advance and
    Advance Plus series ensures outstanding quality and durability.
    durability.

DOWNLOADS & Media

model overview

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Modell/ModelFassungsvermögen (kg)/
Capacity (kg)		Volumen (Liter)/
Volume (Liter)		Leistung (KW)/
Total Electric Power (KW) 		Abmessungen (mm)/
Dimensions (mm)		Datenblatt (DE)Datasheet (EN)
SR-11 M E1221012,67785x840x1.694HerunterladenDownload
SR-11 M G122100,67785x840x1.694HerunterladenDownload
SR-11 M S122100,67785x840x1.694HerunterladenDownload
SR-14 M E1226918,67785x989x1.694HerunterladenDownload
SR-14 M G122690,67785x989x1.694HerunterladenDownload
SR-14 M S122690,67785x989x1.694HerunterladenDownload
SR-18 M E1833018,67785x1.125x1.694HerunterladenDownload
SR-18 M G183300,67785x1.125x1.694HerunterladenDownload
SR-18 M S183300,67785x1.125x1.694HerunterladenDownload
SR-22 M E2643824,97890x1.255x1.812HerunterladenDownload
SR-22 M G264380,97890x1.255x1.812HerunterladenDownload
SR-22 M S264380,97890x1.255x1.812HerunterladenDownload
SR-28 M E3154931,15985x1.054x1.946HerunterladenDownload
SR-28 M G315491,15985x1.054x1.946HerunterladenDownload
SR-28 M S315491,15985x1.054x1.946HerunterladenDownload
SR-35 M E3765937,15985x1.210x1.946HerunterladenDownload
SR-35 M G376591,15985x1.210x1.946HerunterladenDownload
SR-35 M S376591,15985x1.210x1.946HerunterladenDownload
