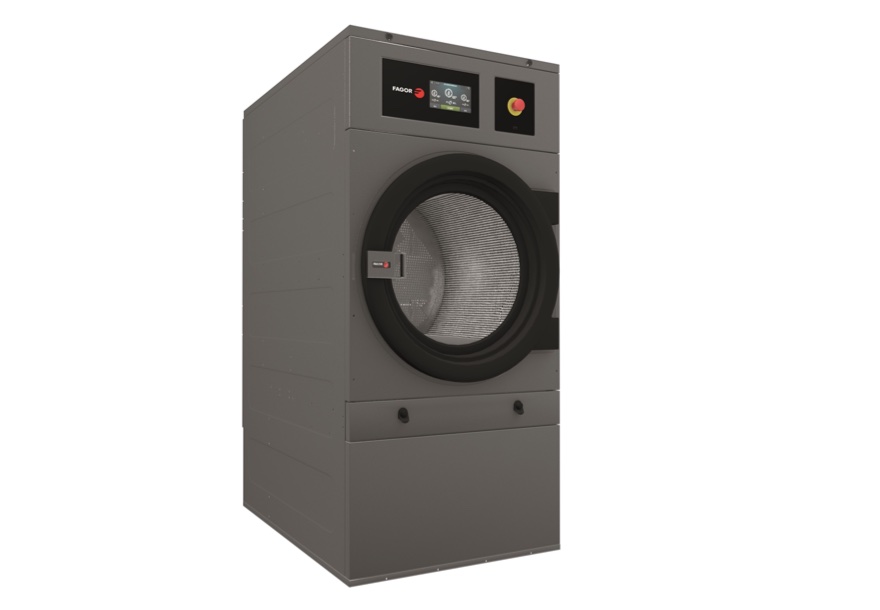

ADVANCE-PLUS-SR-11

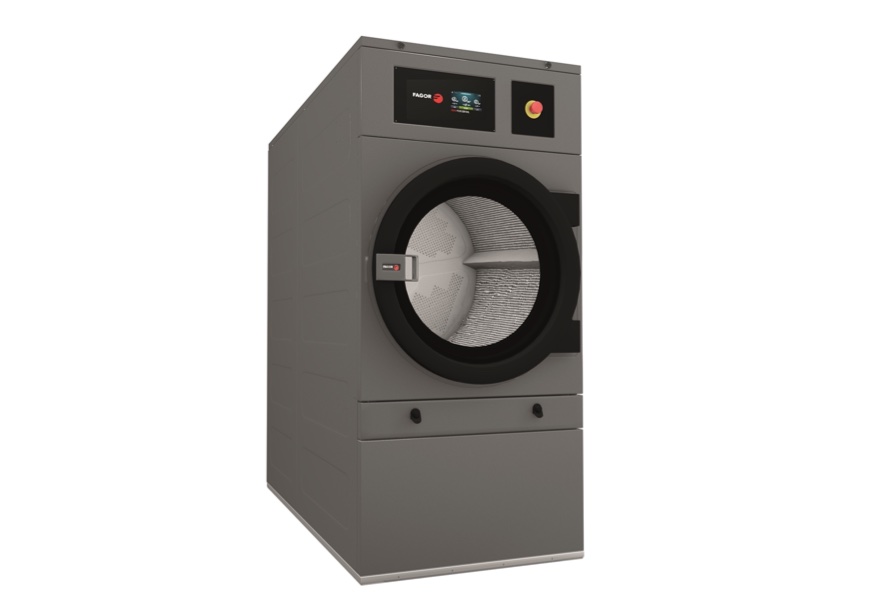

SR-23-1
secadora-industrial-2

tumble dryer

Advance Plus
(11 to 35 kg)

MORE CONTROL AND MORE EFFICIENCY

The Advance Plus dryers are a good example of the company’s global environmental awareness. We know that dryers are among the most energy-intensive machines in laundries today. That is why Fagor Industrial has developed the ADVANCE PLUS product line with one of the most efficient drying systems on the market. This product line not only helps to protect the environment, but can also reduce your costs by up to 40%.

  • High rotation speed
  • More functions
  • More flexibility
  • Longer lifetime
  • Higher efficiency

Technical data

  • iDry system (intelligent humidity sensor and temperature control at the entrance of the drum.
  • double cladding for thermal insulation and optimal energy efficiency
  • Touch Plus control (TP2) with 7″ touch screen
  • optimized axial-radial airflow
  • easy-to-clean steel outer casing with gray skinplate and stainless steel look
  • stainless steel drum
  • drum with recessed holes for gentle treatment of fabrics
  • automatic reversal of the drum rotation direction
  • frequency converter for a more gentle operation
  • double glazed door with large opening
  • Fk system (integrated fire protection system)
  • motion transmission by gear motor for models up to 23 kg and by pulley and poly-V belt on wheels for models of 28 and 35 kg
  • Models available with electric. Gas or steam heating

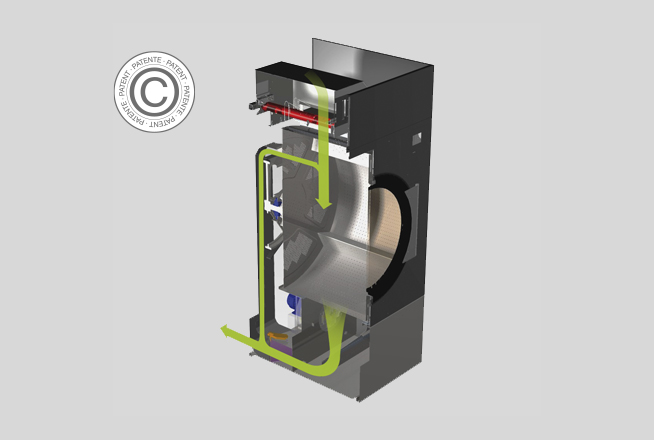

  • Green Flow System In order to achieve maximum energy savings, a recirculation system has been developed that recycles the expelled hot air back into the drum. In the Advance Plus series, the hot air is recycled, reducing drying time and energy consumption to a minimum. can be achieved.

  • Total Flow
    An innovative and optimized mixed air flow for the Advance Plus series dryers. The standard axial-radial airflow (mixed flow) is complemented by orifices to optimize air circulation and maximize efficiency.

  • Double Skin Double skin and double glazed door for complete thermal insulation of the machine and maximum energy efficiency.

DOWNLOADS & Media

MODEL OVERVIEW

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Modell/ModelFassungsvermögen (kg)/
Capacity (kg)		Volumen (Liter)/
Volume (Liter)		Leistung (KW)/
Total Electric Power (KW) 		Abmessungen (mm)/
Dimensions (mm)		Datenblatt (DE)Datasheet (EN)
SR-11 TP2 PLUS E1221012,97785x840x1.694HerunterladenDownload
SR-11 TP2 PLUS G122100,97785x840x1.694HerunterladenDownload
SR-11 TP2 PLUS S122100,97785x840x1.694HerunterladenDownload
SR-14 TP2 E1526918,97785x989x1.694HerunterladenDownload
SR-14 TP2 G152690,97785x989x1.694HerunterladenDownload
SR-14 TP2 S152690,97785x989x1.694HerunterladenDownload
SR-18 TP2 E1833018,97785x1.125x1.694HerunterladenDownload
SR-18 TP2 G183300,97785x1.125x1.694HerunterladenDownload
SR-18 TP2 S183300,97785x1.125x1.694HerunterladenDownload
SR-22 TP2 E2643825,17890x1.255x1.812HerunterladenDownload
SR-22 TP2 G264381,17890x1.255x1.812HerunterladenDownload
SR-22 TP2 S264381,17890x1.255x1.812HerunterladenDownload
SR-28 TP2 PLUS E3154931,35985x1.054x1.946HerunterladenDownload
SR-28 TP2 PLUS G315491,35985x1.054x1.946HerunterladenDownload
SR-28 TP2 PLUS S315491,35985x1.054x1.946HerunterladenDownload
SR-35 TP2 PLUS E3765937,35985x1.210x1.946HerunterladenDownload
SR-35 TP2 PLUS G376591,35985x1.210x1.946HerunterladenDownload
SR-35 TP2 PLUS S376591,35985x1.210x1.946HerunterladenDownload
